Overview

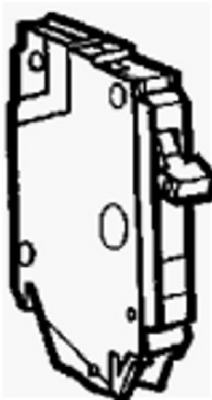

Copper-to-copper connections calibrated for optimum trip performance heat resistant thermoset cases and covers cemented calibration screw. Nearly identical to Type THQL with the same design and performance yet only taking up 1/2 the space 1/2 per pole. UL Listed HACR rated. 15 and 20 amp SWD switching duty rated suitable for 120 volt fluorescent lighting loads. 15 to 25 amp #14 - 8 Cu or #12 - 8 Al AWG wire 30 to 50 amp #8 - 4 Cu or #8 - 2 Al AWG wire. 3-9/32 height x 1/2 width x 2-3/8 depth. 120/240 volt; 10000 AIR.
