Overview

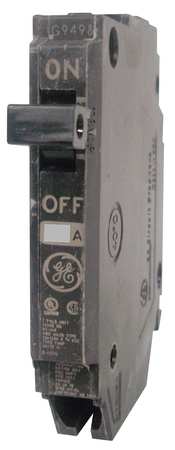

Copper-to-copper connections calibrated for optimum trip performance heat resistant thermoset cases and covers cemented calibration screw. May be used when marked to accept with American Switch Arrow Hart Bryant General Switch GTE Sylvania most ITE Murray Westinghouse Type BR Challenger Crouse-Hinds. 15 to 30 amp 14 - 8 Cu or 12 - 8 Al AWG wire 35 to 60 amp 8 - 3 Cu or 8 - 2 Al AWG wire 70 to 100 amp 6-1/0 Cu or 4 - 1/0 Al AWG wire. UL Listed HACR rated. 120/240 volt; 10 000 AIR. 1 per pole 2 total. This 120 volt GE 15 amp single pole thin series replacement circuit breaker is used in a General Electric load center. This breaker provides two circuits in the space of one. Typical applications up to 1 800 watts include fixed lighting circuits branch circuits wall receptacles electric motors 1/4 hp to 1/2 hp attic fans and garbage disposals. These are only suggested applications and cannot assure compliance with all local codes. Please check local electrical codes before starting any electrical project.
Show More Show Less
